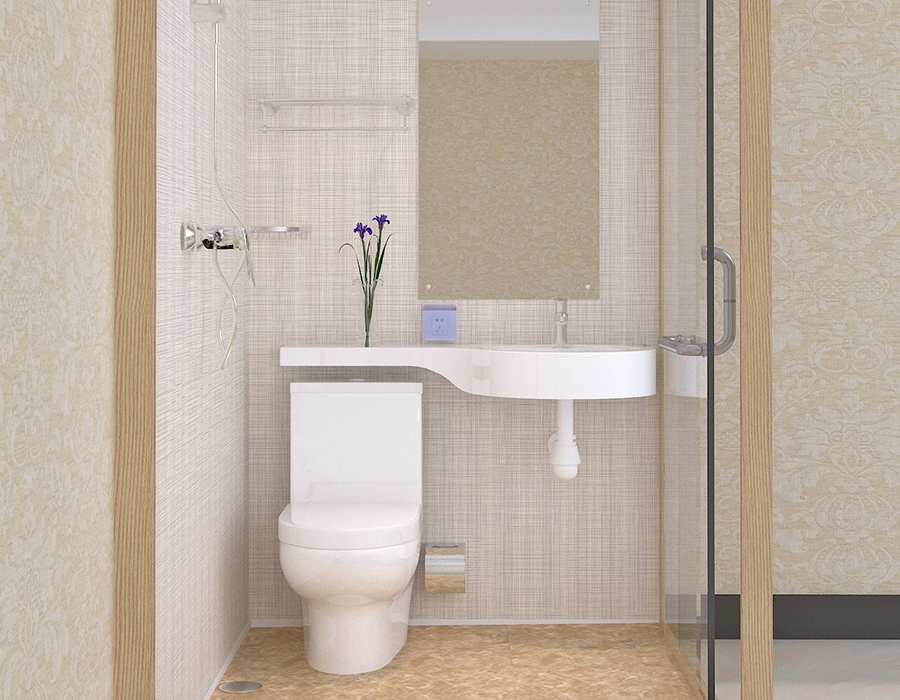

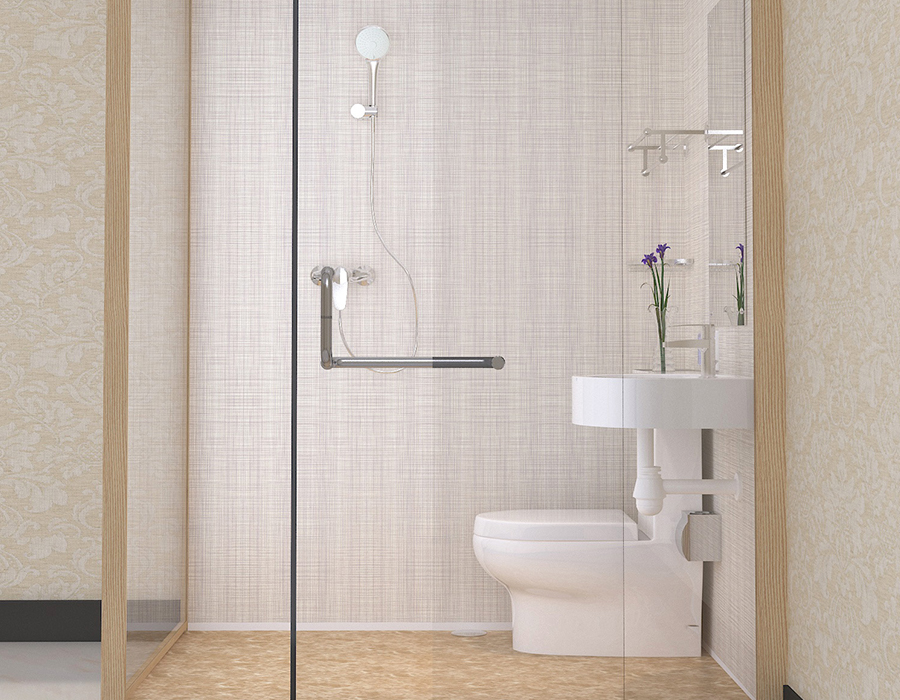

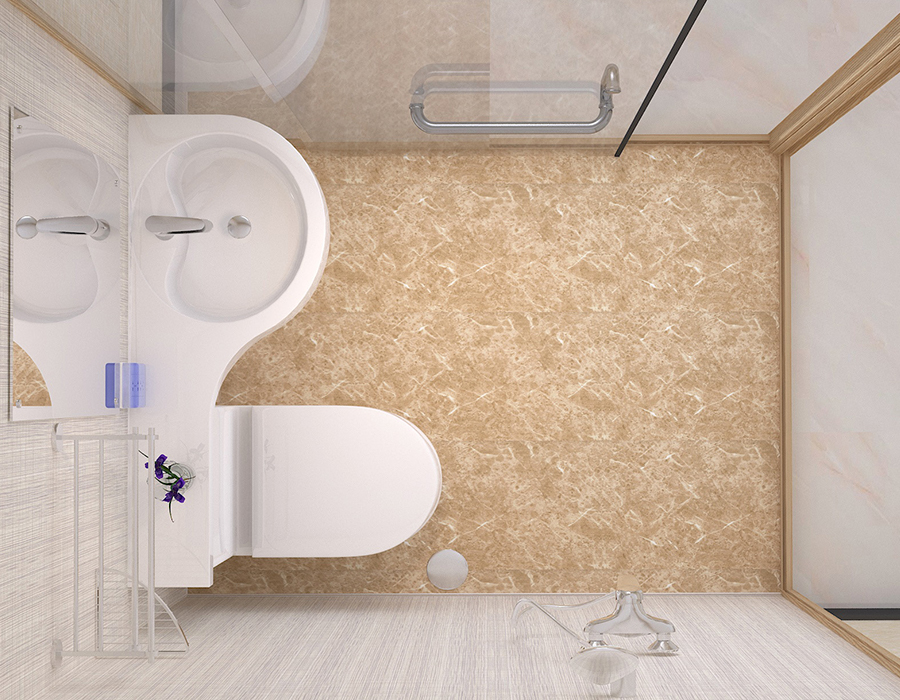

Hotel Modular Bathroom with PEC Resin Fiber Interior Wall Panels and Glass Exterior Walls

What structural considerations are important for an Exterior Glass Prefabricated Bathroom?

In contemporary architecture, the exterior glass prefabricated bathroom represents a significant evolution in both design and functionality. Moving beyond the traditional enclosed space, these prefabricated solutions provide modern, open, and aesthetically pleasing bathroom experiences. With their combination of aluminum alloy frames and tempered glass panels, they allow light to penetrate freely, creating an illusion of spaciousness while maintaining practical utility.

Structural design plays a pivotal role in ensuring these bathrooms are both safe and durable, particularly when installed in multi-unit residential complexes, hotels, medical facilities, or public rental housing.

The Importance of Structural Integrity

Material Selection

One of the first structural considerations in an exterior glass prefabricated bathroom is material selection. The combination of aluminum alloy frames and tempered glass is standard due to its balance of strength, weight, and durability. Aluminum provides a lightweight yet rigid framework that resists corrosion, essential for bathrooms exposed to humidity. Tempered glass ensures safety; it is engineered to shatter into small, non-injurious pieces if broken, reducing the risk of injury.

The choice between frosted and translucent glass affects not only aesthetics but also structural load distribution. Frosted panels generally weigh slightly more due to surface treatment, requiring careful consideration of frame reinforcement.

Load-Bearing Considerations

The frame and wall structure of the bathroom must withstand static loads from the glass panels and dynamic loads from daily use. Proper load distribution is essential to prevent warping, cracking, or detachment over time. In high-rise or exterior installations, wind and environmental factors also contribute to structural stress, necessitating secure anchoring to the building framework.

A well-designed prefabricated bathroom ensures that the aluminum frame transfers weight evenly, mitigating concentrated pressure points that could compromise the glass or its mounts.

Anchoring and Support Systems

Anchoring methods are critical for both safety and longevity. Bolted or embedded fixtures must account for building settlement and potential vibrations. Prefabricated bathroom modules are often installed as a single unit, requiring precision alignment with floor slabs, walls, and ceilings. Inadequate anchoring can lead to misalignment, gaps, or structural failure.

Support systems also include internal braces and cross-members within the aluminum frame. These elements help maintain dimensional stability, ensuring that glass panels remain securely in place over the product’s lifespan.

Environmental and Safety Considerations

Resistance to Weather and Humidity

When installed as an exterior bathroom module, exposure to the elements is a critical structural factor. Aluminum frames must be treated for corrosion resistance, while tempered glass panels require coatings or laminates that resist condensation and UV damage. Humidity management is equally important; excess moisture can compromise sealants or connections over time.

High-quality prefabricated bathrooms incorporate sealed joints and moisture-resistant materials, reducing the risk of structural degradation.

Thermal Expansion and Contraction

Aluminum and glass expand and contract at different rates under temperature variations. In an Exterior Glass Prefabricated Bathroom, designers must account for this differential to avoid stress fractures or warping. Proper joint design, expansion gaps, and flexible sealants are structural elements that mitigate thermal stress.

Safety and Impact Resistance

Safety considerations extend beyond material choice. The structural framework must prevent tipping, excessive vibration, or panel detachment. Impact resistance is essential, particularly in environments such as hotels, hospitals, or public facilities. Tempered glass, combined with a robust aluminum frame, ensures both functional safety and user confidence.

Integration with Building Systems

Plumbing and Drainage

Structural design must accommodate plumbing without compromising stability. Prefabricated bathroom modules integrate water supply, drainage, and venting systems into preformed channels within walls and floors. These channels are reinforced to prevent leaks or structural weakness. Properly engineered support ensures that pipes do not exert additional stress on the glass panels or frame.

Electrical and Ventilation Systems

Electrical installations, including lighting, ventilation, and outlets, are embedded within the frame and wall panels. Structural engineers must ensure that conduits and fittings do not reduce the load-bearing capacity of the aluminum frame or compromise glass integrity. Adequate ventilation reduces condensation buildup, protecting the structure over time.

Design and Modularity Considerations

Standardized vs. Custom Modules

Companies specializing in Exterior Glass Prefabricated Bathroom production, such as Jiangsu Kounor Home Technology Co., Ltd., offer both standardized and customizable modules. Standardized modules streamline installation and guarantee structural integrity through tested designs. Custom modules require additional structural analysis to accommodate unique dimensions, glass treatments, or integrated features like storage units or smart devices.

Structural consistency across modules ensures that multi-unit installations maintain both visual uniformity and safety standards.

Visual and Spatial Considerations

The transparency of glass panels introduces unique structural considerations. While it enhances spatial perception and lighting, it also places emphasis on precise alignment and support, as misaligned panels are more noticeable. Aluminum inlays and frames must be carefully designed to balance aesthetics with strength, particularly at corners and joints where stress accumulates.

Maintenance and Longevity

Proper structural design contributes to ease of maintenance. A well-engineered Exterior Glass Prefabricated Bathroom allows for component replacement without dismantling the entire module. Access points for cleaning, inspections, and repairs are integrated into the frame design.

Durable materials, corrosion-resistant coatings, and flexible sealants collectively extend the bathroom’s operational life while maintaining structural integrity.

Comparison of Structural Features

Conclusion

The structural considerations of an Exterior Glass Prefabricated Bathroom extend beyond simple assembly. Proper material selection, load distribution, anchoring, and integration with plumbing and electrical systems are essential for durability and safety. Environmental factors such as humidity, temperature fluctuations, and exposure to sunlight must be considered to ensure long-term performance.

By prioritizing these structural aspects, architects, engineers, and buyers can achieve a bathroom that is not only visually appealing and modern but also safe, durable, and functional. Companies with expertise in integrated prefabricated solutions, like Jiangsu Kounor Home Technology Co., Ltd., demonstrate the value of combining rigorous R&D, standardized design, and customizable solutions in producing high-quality exterior glass bathroom modules suitable for a range of residential and commercial applications.
